Crane Systems Australia is sole Australian Distributor for GH Cranes, Hoists & Components.
We offer GH wire rope hoists, for bridge, gantry and semi-gantry cranes, single and double girder, and other type of applications. Cutting-edge design technology, Highly sophisticated production resources and efficient organization have placed GH among Europe´s top lifting equipment manufacturers.
​
CraneSystems Australia is proudly Australian owned engineering company specialising in the design, manufacture and supply of overhead cranes, Gantry Cranes, bridge cranes, single girder cranes, double girder cranes, gantry cranes, jib cranes, wire rope hoists, chain hoists, entertainment hoists and manual lifting and material handling products to Victoria, Melbourne, Sydney, South Australia, Adelaide, Western Australia, Perth, Victoria, many other locations across Australia.
​
​

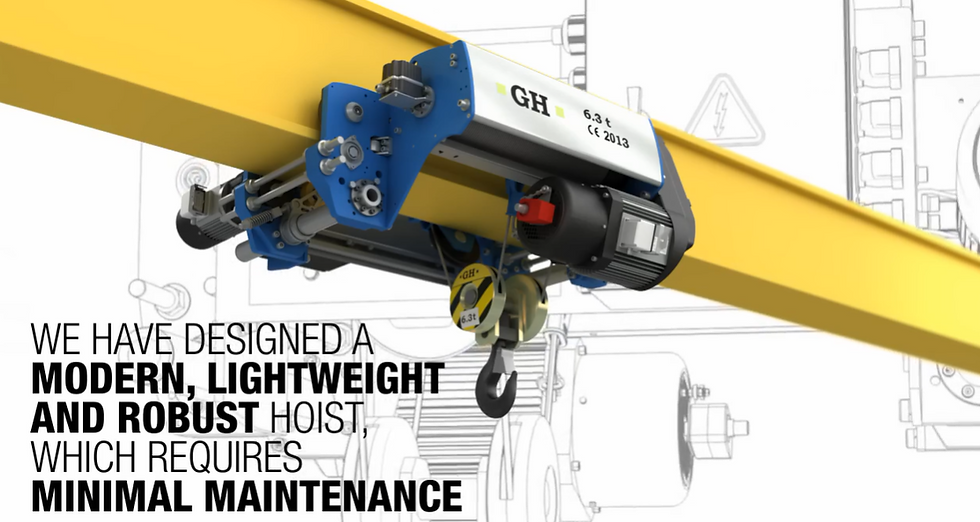

Cutting-edge design technology, highly sophisticated production resources and efficient organization have placed GH among Europe´s top lifting equipment manufacturers. GH wire rope hoists, for bridge, gantry and semi-gantry cranes, single and double girder, and other type of applications. From 800 Kg to 100 ton of capacity, in different versions: Foot Mounted, single and double girder. Rugged and compact, modular construction and easy maintenance, with different cable strands, that allow a wide range of hook paths, lifting speed and working group FEM / ISO depending on the demands of starts per hour and duty cycles of loads to be lifted.GH hoists are fitted with a standard control system and monitoring of Safe Operation Period. The possibility to check in any moment the actual use of your machine will help the preventive maintenance.The range of GH hoists have been designed with the following principles; reliability, security, durability, price and easy maintenance. The design is rectangular, modern, compact with perfect dimensional balance.Hoist from 800 kg. to 100 ton
WIRE ROPE HOISTS
Explosion Proof Wire Rope Hoists
1 Design: robust, compact and clean with a modern and technological profile.
No counterweights: lighter and with the most economic structure.
Modular design: changing just a few of the parts allows the hoist configuration to be transformed.
Bolted structure: The maintenance is simpler and avoids the deformation of the welded frame, achieving greater versatility.
Exterior fairing GHA12, GHB11 and GHD13, with a common plate for the entire range of each generation.
Compact tubular double girder concept: More competitive solution than the typical trolley with end carriage on the market. Exclusive to GH.
​​​​​
2 Gears made of rectified cemented material. This lengthens the life of the gearbox, manufactured according to ISO 6336. Reduces vibrations and noise of the gearbox.
Protection of travel gear in suspended AR: avoids handling and possible entrapment. Prevents the dripping of grease.
Four-gauge pin type load cell: for load limiter, which makes it possible to know the load spectrum and determine the SWP.
Steel cable, with plastic injection and safety factor greater than 5 in all configurations.
Quick connectors, which facilitate maintenance and save assembly time.
Cabinets with COREBOX, datalogger and connectivity.
Top of the range commercial electrical components: Schneider, Weidmüller, etc
​​​
3 Standardisation of variable speed drive for all movements.
Increased safety: by placing the encoder in an elevated position that favours the return of the command information from the drive to the motor. Robust and high-resolution design encoder.
High-capacity braking resistance, overload capacity, oversized. High dielectric strength.
Overspeed for small loads: Allows the hoist to go faster if the load is below 25%. With the maximum load it can go at nominal speed. From 25% to 60% maximum overspeed.
Possibility of fitting regenerative drive and the elimination of braking resistors. Energy savings
